Booster Pumps

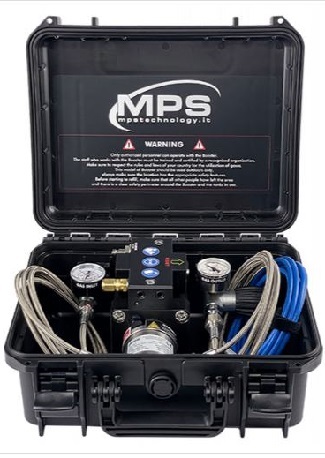

C1 Light Booster Pump

Manufacturer MPS Technology

C1 Light is recommended for CCR Divers and for uses where high flow rates are not required.

The new designed to become the most portable, lightweight and complete filling system ever created.

Incredibly small, thanks its portability the C1 Light is the ideal travel companion.



  • CCR Divers
  • Technical Divers

TECHNICAL DATA

AIR DRIVEN GAS BOOSTER SINGLE ACTING - SINGLE STAGE

TRANSMISSION RATIO: 1:25

MAX DRIVE AIR PRESSURE: 10/13 Bar - 145/190 psig

DISPLACEMENT: 9 cc

MAX OUT PRESSURE: 230 Bar - 3335 psig / 310 Bar - 4500 psig

MIN SUCTION PRESSURE: 5 Bar

AIR DRIVE INLET CONNECTION: Micro Quick Connection 1/4"

AIR DRIVE REGULATOR: No

AIR DRIVE HOSE LENGHT: 3 m

GAS INLET CONNECTION : 2 m Stainless Steel Braid Hose, Filter, 40 mm 0-400 Bar Gauge, DIN 300 connection

GAS OUTLET CONNECTION: 2 m Stainless Steel Braid Hose, Purge Valve, 40 mm 0-400 Bar Gauge, DIN 300 connection

WEIGHT: 6 Kg

DIMENSIONS: 33.6 x 30 x 14.8

MAIN FEATURES:

  • OXYGEN SERVICE
  • Technopolimer water/dust resistant transport case
  • Super compact and lightweight



For availability / delivery times email info@tecdivegear.com.au or phone us on 0414926374

$POA
Available:
out of stock
