Bauer Compressors

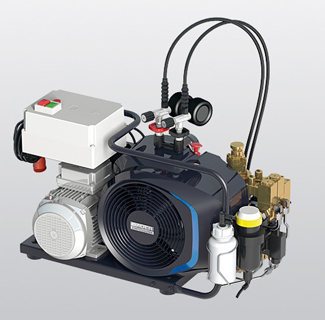

JuniorII-W with auto condesate/shutoff system
Manufacturer Bauer
Product Code : JuniorII-W
Single Phase 2.2 kw 230 v 50 Hz 15amp with Single fill whip
Charging rate 100l/min
Pressure 225Bar
Purification System P21/350
Weight 46kg
Dimensions 825 x 475 x 495mm
Compressor block with following features
â– Splash lubrication
â– Micronic intake filter: 10 ïm
â– Intermediate coolers, air cooled
â– Aftercooler, air cooled, outlet temperature approx. 10-15 °C above cooling air temperature
â– Enlarged last stage cooler for improved cooling air flow and lower temperatures
â– Intermediate separators after each stage (except 1st stage)
â– Final separator for oil and water condensate after last stage
â– Sealed safety valves after each stage
â– TÜV approved final pressure safety valve
â– Pressure maintaining and check valve after the final stage
Auto Condensate drain system and automatic switch off at final pressure.
The automatic condensate drain removes water from the intermediate separator and the final separator automatically during both operation (every 15 minutes) and shutdown. In addition, the compressor is switched off automatically when the final pressure is reached.
Consisting of:
â– 1 × control as per DIN EN 60204 (CE conformity is ensured)
â– 1 × pressure switch
â– 1 × condensate valve
â– 1 × solenoid valve
Price does not include delivery
