Bauer Compressors
Oceanus Compressors
Manufacturer Bauer

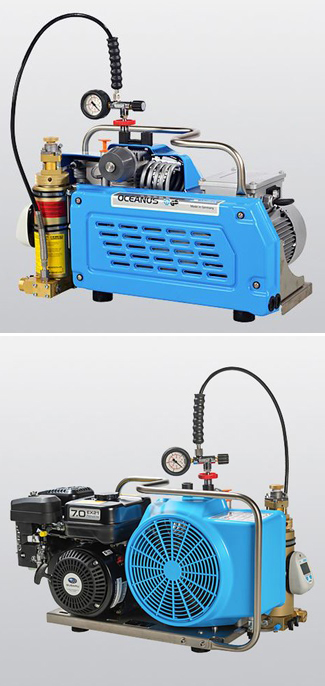

OCEANUS-B | OCEANUS-E | OCEANUS-W
The OCEANUS Compressors are impressive with its excellent performance data: despite being almost identical in size, it can fill a breathing air cylinder up to 40% faster than the JUNIOR II.
Designed for challenging professional applications, it impresses with its durability, mobility and high free air delivery.
Thanks to the corrosion-resistant base frame made from stainless steel, the OCEANUS is the ideal compressor even for tropical climates. It is used on ships, submersibles and expeditions, and is also suitable for use as a paintball compressor, sport shooting compressor or mobile fire service compressor.
A generous oil reserve in the crankcase and the powerful oil pump mean that operation is also possible even at very oblique angles up to 30° (up to 20° in the petrol version).
This quiet and compact unit can be carried easily by a single person and will fit in almost any car boot.
Durable and robust: Frame, handle and safe filling valve made from rust-free material
Minimum wear: Thanks to piston rings made from innovative high-tech plastic
Impressive performance data: At free air delivery of 140 l/min
Really easy to transport: Outstandingly light in weight and easy to handle
Oceanus 140
140 litres per minute fill rate ( 5 cfm)
225 or 330 Bar working pressure
3 Stages 2300 rpm
Purification system P21/350 - Filter with separate oil and water separators
■ Final mechanical separator for the removal of oil-/ water condensate
■ TRIPLEX long-life filter cartridge processing in 4 stages (drying, neutralization, CO-removal, micro filtering)
■ Final safety valve, fitted to filter housing
■ Pressure maintaining / non return valve, fitted to filter housing
Single Phase 240v 50Hz
3 PHASE 400V 50Hz
Petrol Drive units, 3-5.1 KW
52kgs 79cm x 41cm x 42cm
Optional Extra's:
Automatic condensate drain system and automatic switch off at final pressure
The automatic condensate drain removes water from the intermediate separator and the final separator automatically during both operation (every 15 minutes) and shutdown. In addition the compressor is switched off automatically when the final pressure is reached.
Switch-over device PN 300 / PN 200
The switch-over device enables breathing air cylinders to be filled with both 200 bar and 300 bar. For optimum limiting of the maximum operating pressure, each of the two pressure ranges is protected with a type-tested final pressure safety valve.
High-quality high-pressure filling hoses made from food-safe and long-life hose material make for flexible and safe handling. Swivel hose connections enable the filling valve to be connected to the breathing air cylinder quickly, easily and safely
For price or to order call Stephen on 0414926374 or email tecdivegear.com.au@gmail.com
